MDD
VINYL INSULATED DOUBLE CRIMP MALE DISCONNECTORS

Share |

VINYL INSULATED DOUBLE CRIMP MALE DISCONNECTORS

Material
Insulation:Vinyl
Terminal Body: Brass
Metallic Sleeve:Copper
Plating: Tin

Data Source : 1
WIRE
RANGE
ITEM NO. NEMA TAB DIMENSION mm(inch) COLOR Q`TY
BOX
mm2
(A.W.G.)
Thickness×Width
mm · inch

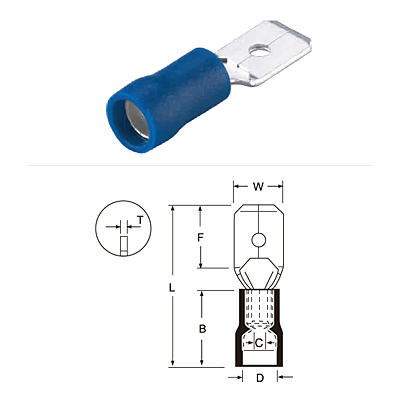

W F L B D C T
0.5-1.5
(22-16)
MDD1-110(5) 0.5×2.8 .020×.110 2.8(.110) 6.5(.256) 19.2(.756) 10.5(.413) 3.8(.150) 1.7(.067) 0.5(.020) Red 1000
MDD1-110(8) 0.8×2.8 .032×.110 0.4(.016)
MDD1-187(5) 0.5×4.75 .020×.187 4.8(.189) 6.5(.256) 19.8(.780) 0.5(.020)
MDD1-187(8) 0.8×4.75 .032×.187 6.7(.264) 0.4(.016)
MDD1-250 0.8×6.35 .032×.250 6.35(.250) 7.7(.303) 21.8(.858)
1.5-2.5
(16-14)
MDD2-187(5) 0.5×4.75 .020×.187 4.8(.189) 6.5(.256) 19.8(.780) 10.5(.413) 4.7(.185) 2.3(.091) 0.5(.020) Blue 1000
MDD2-187(8) 0.8×4.75 .032×.187 6.7(.264) 0.4(.016)
MDD2-250 0.8×6.35 .032×.250 6.35(.250) 7.7(.303) 21.8(.858)
4-6
(12-10)
MDD5-250 0.8×6.35 .032×.250 6.35(.250) 7.7(.303) 24.0(.945) 13.0(.512) 6.2(.244)

3.4(.134)

0.4(.016) Yellow 500
