VINYL INUSLATED DOUBLE CRIMP BLADE TERMINALS

Share |

VINYL  INUSLATED  DOUBLE CRIMP BLADE TERMINALS

Material
Insulation:Vinyl
Terminal Body: Copper
Metallic Sleeve: Copper
Plating: Tin

Data Source : 1

WIRE

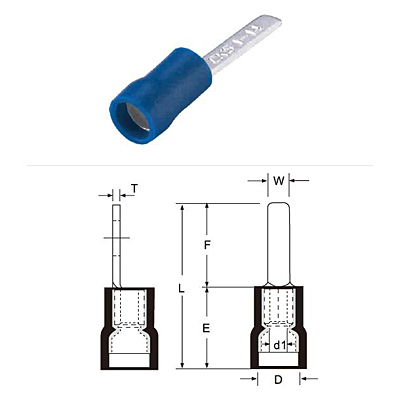

RANGE		 ITEM NO. DIMENSION mm(inch) COLOR Q’TY
BOX
mm2
(A.W.G)		 W F L E D d1 T
0.5-1.5
(22-16)		 DBVD1-9 2.8(.110) 9.0(.354) 19.3(.760) 10.5(.413) 4.2(.165) 1.7(.067) 0.75(.030) Red 1000
DBVD1-10 2.3(.091) 10.0(.394) 20.3(.799) 1000
DBVD1-11 3.0(.118) 11.0(.433) 21.3(.839) 1000
DBVD1-13 3.0(.118) 13.0(.512) 23.3(.917) 1000
DBVD1-14 3.0(.118) 14.0(.551) 24.3(.957) 1000
DBVD1-18 2.2(.087) 18.0(.709) 28.3(1.141) 1000
DBVDS1-18 2.0(.079) 1000
1.5-2.5
(16-14)		 DBVD2-9 2.8(.110) 9.0(.354) 19.3(.760) 10.5(.413) 5.0(.197) 2.3(.091) 0.8(0.31) Blue 1000
DBVD2-10 2.4(.094) 10.0(.394) 20.3(.799) 1000
DBVD2-13 2.4(.094) 13.0(.512) 23.3(.917) 1000
DBVDL2-13 3.0(.118) 1000
DBVD2-14 2.4(.094) 14.0(.551) 24.3(.957) 1000
DBVDL2-14 3.0(.118) 1000
DBVDS2-18 2.0(.079) 18.0(.709) 28.3(1.141) 1000
DBVD2-18 2.2(.087) 1000
DBVDL2-18 2.8(110) 1000
4-6
(12-16)		 DBVD5-10 2.8(.110) 10.0(.394) 23.5(.925) 13.5(.512) 6.8(.277) 3.4(.134) 1.0(.039） Yellow 500
DBVDS5-14 4.0(.157) 14.0(.551) 27.5(1.083) 500
DBVD5-14 4.5(.177) 14.0(.551) 500
DBVDS5-18 2.0(.079) 18.0(.709) 31.5(1.240） 3.6(.142) 500
DBVD5-18 4.5(.177) 18.0(.709) 3.4(.134) 500
